MCPLP Robotics Video Survey

(Mill Creek Park Lakes Project)



MCPLP will endeavor to build and deploy low-cost, open-source underwater robots to perform a video survey of the bottom of Lakes Glacier, Cohasset, and Newport. These convenient natural resources offer an excellent opportunity to explore and possibly innovate underwater robotic applications. We believe that a total underwater video survey (using robots) of the bottom of our precious lakes has never been done before and will serve as a interesting and fun project for robot enthusiasts, students, and researchers in the area. The artifacts of this project will be accessible to the Northeast Ohio Community.




Challenges of Underwater Robots


Underwater robots can be used to monitor, perform or assist in performing water quality assessments. Underwater robots can be used to deploy sensor clusters or long term monitoring devices (like data loggers).

Underwater robots can:

  1. •Access areas that are impossible or difficult to access

  2. •Allow for more routine assessments/monitoring for longer periods of time

  3. •Be used to gather information about the physical characteristics of the body of water


Here are some of the challenges we must meet:


  1. •Underwater Communications

  2. •Sound waves in shallow water can be adversely affected by temperature; electromagnetic waves do not work due to the conducting nature of the medium; free-space optical waves used as wireless communication carriers are generally limited to very short distances.

  3. •Power Levels

  4. •High power levels are needed due to more complex signal processing

  5. •Positioning Measurements

  6. •Challenge of obtaining precise positioning. GPS fails to provide location and time information (Use of Multiple GPS Intelligent Buoys - GIBs).

  7. •Mid-Depth Zone Navigation

  8. •Mid-depth zone severely limits the navigational and exploration capabilities of the robot. There are not sufficient commercially available sensors that can work at this mid-depth for precise and accurate measurements.

  9. •Unpredictable Disturbances

  10. •Environmental disturbances due to weather changes, waves, wind, and ocean currents have a significant impact on underwater robot motion and stability.

  11. •Visual Imaging


Oak Hill Robotics Makerspace Video Archives

DIY UNDERWATER ROBOT DESIGNED BY SEAPERCH


U.S. NAVY at DARPA's Tech Expo shows an easy to build SeaPerch ROV subs with GoPro and other cameras for underwater driving fun and learning.

Robot Arm Programming


Cameron Hughes discusses programming the Phantom Pincher X robot arm that will be used in the CSI/Clue Robot Challenge.

MCPLP ROBOTICS VIDEO SURVEY

V-REP Demonstration


Jeff Rimko demonstrates the V-REP robot simulator. It is a 3D robot simulation tool that runs under Linux and MAC environments.

Drone Robot Demonstration


Bob demonstrates a drone that can be navigated inside a room.

pH Sensor Test


Brian Jones test the pH sensor. This sensor will be used with two of the robot projects.

Arduino Ultrasonic Sensor


Demonstration of the Arduino Ultrasonic sensor.

Vernier Magnetic Field Sensor


The Magnetic Field Sensor can be used to study the field around permanent magnets, coils, and electrical devices. This sensor will be used for a robot project.


Physical specifications:

  1. •Weight 2.6kg

  2. •Dimensions 30cm long x 20cm wide x 15cm high

  3. •Nominal battery life using rechargeable lithium batteries is 2-3 hours (depending on use)

Performance specifications:

  1. •Maximum depth 100m (328ft)

  2. •Maximum tether length 300m (100m tether provided)

  3. •Maximum forward speed 2 knots

  4. •LED brightness 200lm

  5. •Temperature capability -10C to 50C

  6. •Software controlled camera tilt (+/- 60 deg from center)

Instrumentation:

  1. •HD Webcam (120 deg FOV) with audio

  2. •Red Scaling lasers (parallel, 10 cm separation)

  3. •Current and voltage protection with feedback to ensure proper system function

  4. •External I2C bus with 3.3V power for external instrumentation

  5. •6 additional auxiliary wires for user-defined external instrumentation or devices. One power PWM channel and one servo control channel are preconfigured.

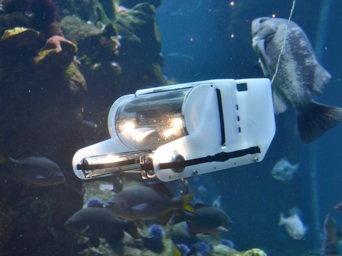

OPENROV is the robot that we want to use to perform the video survey. Here are a few of it specifications:

Interested in working with us?

JOIN US

Technical Overview of OPENROV


This video describes some of the features of the new version 2.7 OpenROV.

OPENROV Timelapse Build


This video shows a timelapsed building of 2.7 OpenROV.

ROV Underwater Footage


Exploring Long Island in Lake George with underwater ROV. 10-20ft deep off boat while at dock, crystal clear water you can see very good, this is the gopro attached to ROV.
